5-Star Automatic Gas Nozzle

The new lightweight automatic gasoline nozzle is ideal for full/self service. "One hand" open clip with patented "Kicker" feature provides positive clip release with automatic shut off. Mico-Touch valve offers precise - to the penny flow control.

More Info

5-Star S

5-Star "S" Automatic Gas Nozzle

This new lightweight Automatic gasoline nozzle is ideal for prepaid locations. Has a pressure activated secondary shut-off that prevents fuel flow until system is pressurized. Micro-Touch valve precise - to the penny flow control.

More Info

Micro-Flo 1000

Micro-Flo 1000 Automatic Gas Nozzle

This Automatic Gasoline Nozzle is a traditional styled nozzle with M. Carder refinements. Our Micro-touch valve for precise flow control. Rotomatic latch pin for positive automatic shut off.

More Info

Farm & Consumer

Farm & Consumer Automatic Gasoline Nozzles

This F&C Automatic nozzle is designed for use with small 12 volt and AC utility pumps, as well as larger Farm & Consumer pumps. The hook is the toughest available - will always maintain its shape.

More Info

Our Products: Automatic Gasoline Nozzles

Select a product on the left for more information.

5-Star Automatic Gasoline Nozzle

MAde in the USA
Made In The USA

UL Listed
UL listed for use with gas 10% ethanol blend and diesel.

PEI Member

Download a spec sheet for the Mircro Flo-1000Download a spec sheet.

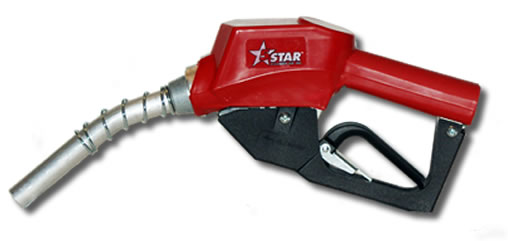

5-Star Automatic Gasoline Nozzle

The 5-Star is a lightweight automatic gasoline nozzle that is ideal for full and self service locations. On hand hold open clip with patented "kicker" which provides positive clip release with automatic shut off.

Also see our 5-Star "S" Automatic Gasoline Nozzle which has a pressure activated secondary shut off that prevents the fuel flow until the pumping system is operating and will automatically close when the pump is turned off.

M Carder Performance Advantages

  • Solid metal spout adapter - added strength
  • Check valve seat - machined aluminum, check valves seal tightly
  • Roto-Matic® latch pin - (patented) smoother shut off
  • Unique binder screws - to secure handguard firmly
  • Micro-Touch® valve assembly - (patented) precise flow control (stops on 1/2 cent!)
  • Pure teflon packing - eliminates stem leaks
Nozzle Specifications   Construction Specifications

Inlet: 3/4" NPT or BSPP

Spout: Aluminum 13/16" or 15/16"

Seals: Viton*

Poppet Disc: Viton*

Packing: Pure Teflon

Weight: 2.5 lbs

Length: 13.5"

Height : 9"


Body: High Strength Aluminum

Handguard: Super tough nylon

Vac. Cap: Nylon

Lever: Steel w/super tough nylon cover

Scuff Guard: Smartguard

Body: Zinc

* Cold Climate Seals Available   Shipping and packing
micro flo-1000

Nozzles are individually boxed and and packed 20 per carton.

Weight: 2.5 lbs each 56 lbs. per carton.


Bulk packing available : Nozzles are sealed in plastic and packed 250 per master carton.


Download a spec sheet for the Mircro Flo-1000Download a spec sheet.

The 5-Star nozzle is rebuildable.
