Conversion Adapters
Over the next two years the EPA and most state environmental agencies will permit service stations to change from vapor recovery to standard fueling equipment. The canisters on the vehicles mow capture the vapor when fueling. M. Carder makes conversion adaptors for all three vapor recovery systems.
More InfoTransitional Conversion Adapter
This adaptor allows the use of a standard 5-Star nozzle with the existing vapor recovery hose and other equipment. By using this adaptor a marketer can use his “Good” vapor equipment until it fails. This allows the marketer the opportunity to use the vapor hoses and breakaways that they have inventory rather than lose their investment. M. Carder makes a Transitional adaptor for all three vapor systems.
More InfoFlow Regulators
Spout Assemblies
Maintenance Kit
Our Products: Nozzle Accessories
Select a product on the left for more information.
Conversion Adapters
Over the next two years the EPA and most state environmental agencies will permit service stations to change from vapor recovery to standard fueling equipment. The canisters on the vehicles now capture the vapor when fueling.
M. Carder makes conversion adaptors for all three vapor recovery systems.

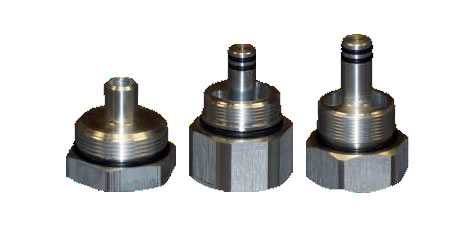

| AV34B-Balance | AV34V-Vacuum Assist | AV34VH-Healy |
All of the above conversion adaptors are installed into the dispenser hose base.
| Conversion Adaptor Specifications | Construction Specifications | |||||||||||||||||||||
|
Body: All are machined from solid aluminum bar stock. Working Pressure: 50 PSI max For use with gas 10% ethanol blend and diesel. |
|||||||||||||||||||||
 Download a spec sheet. |
||||||||||||||||||||||
The transitional adaptor is available as "Adaptor" only and a Kit.
KIT 1
Contains a conversion adaptor, 5-Star nozzle, swivel, breakaway and a breakaway whip hose. All packed in a compact carton. Just add the pump hose.
KIT 2
The ultimate conversion kit and it offers a "no sealant" needed installation for the technician. This kit contains everything in KIT 1 plus a 9 ft. pump hose, all factory assembled so the only connection is to thread the conversion adaptor which seals with an O ring into the hose base on the dispenser.
